|DN 85-200 mm
(with accessory 300mm)
|pneumatic / rod
|Cutting arm drive
|Milling motor drive
|Milling motor output
|750 W at 20,000 rpm
|Length of supply cable
|max. 50 m, max. 100 m (without bubble feed)
אפשר לראות רובוטים לכרסום וחיתוך בצנרת שלנו כאן.
תבקרו בערוץ Youtube של NDT24 כאן.

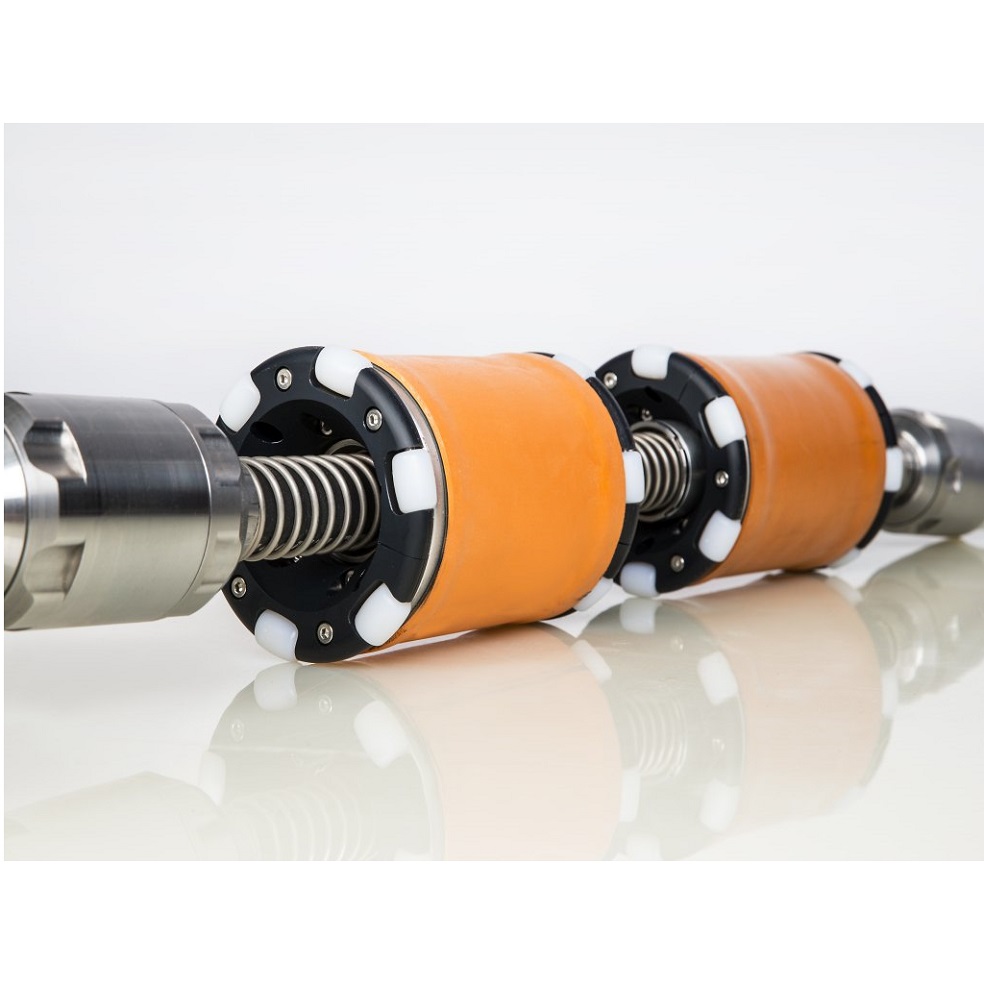

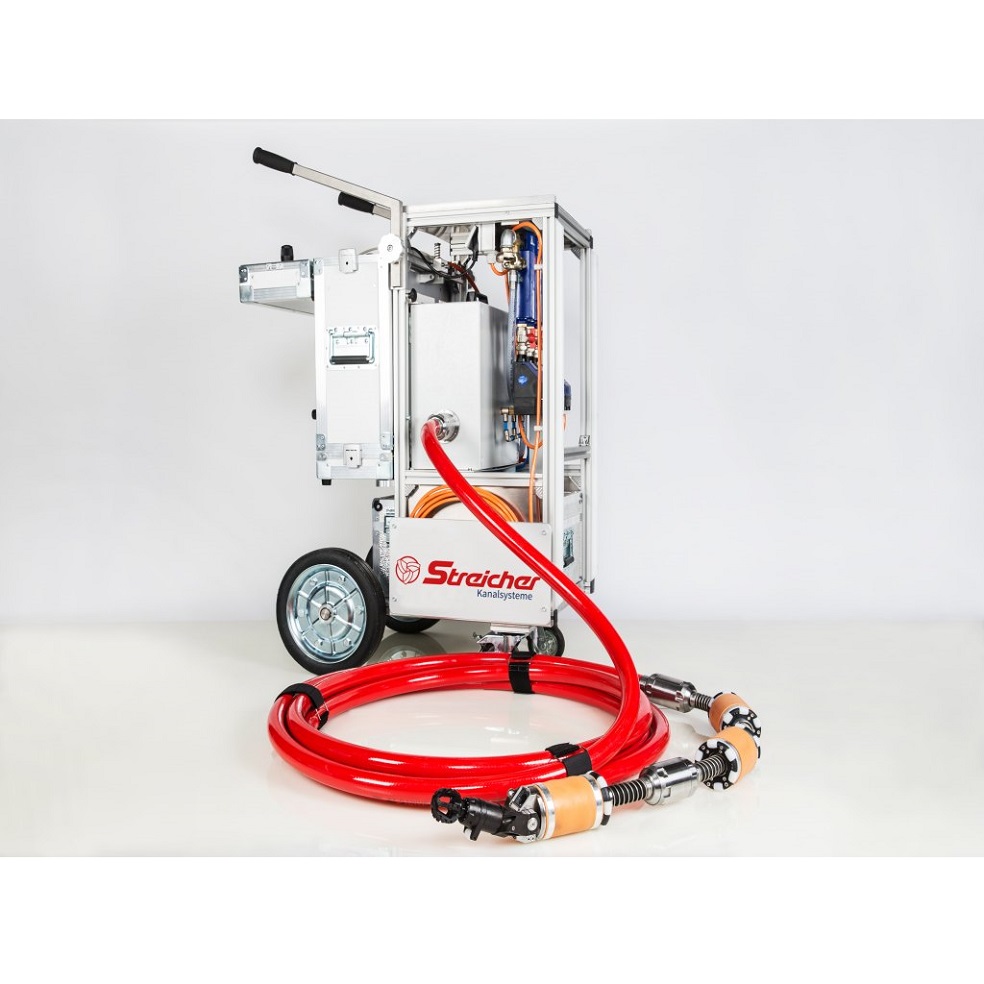

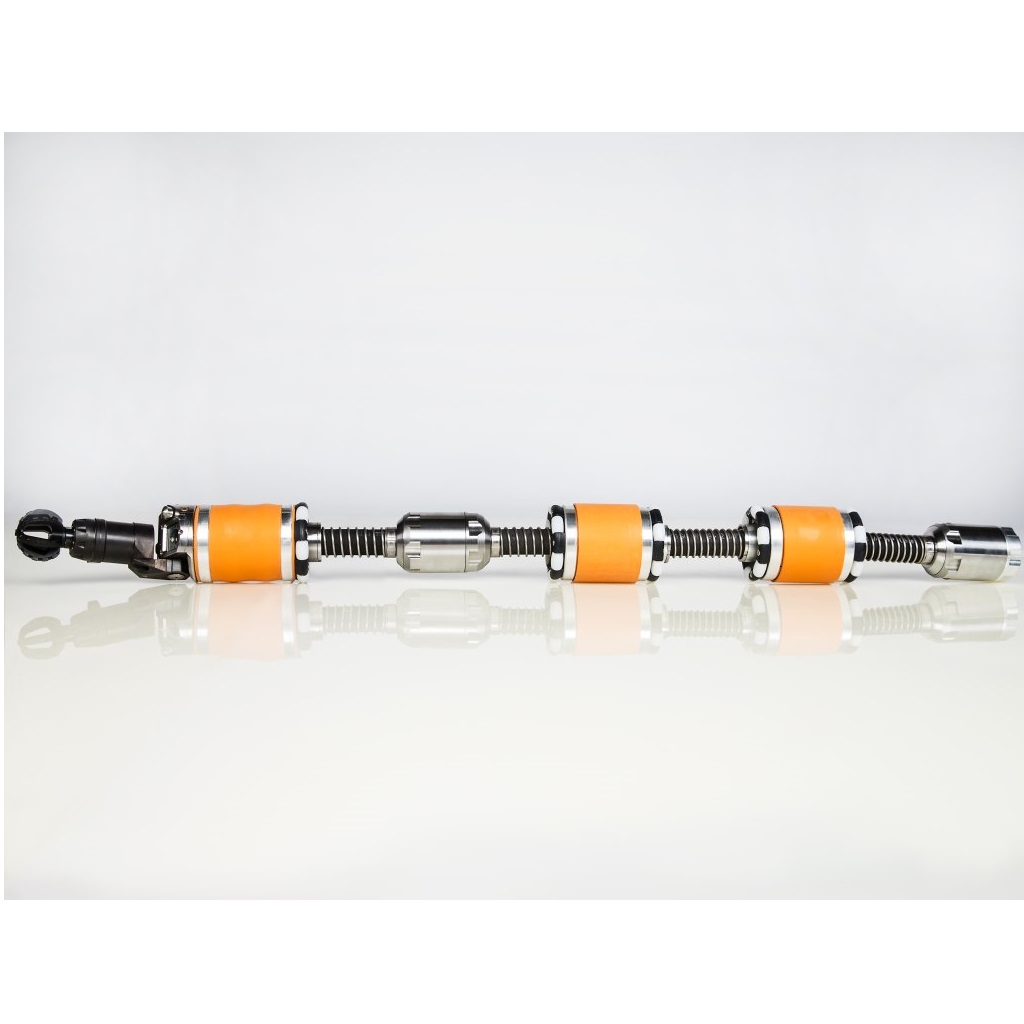

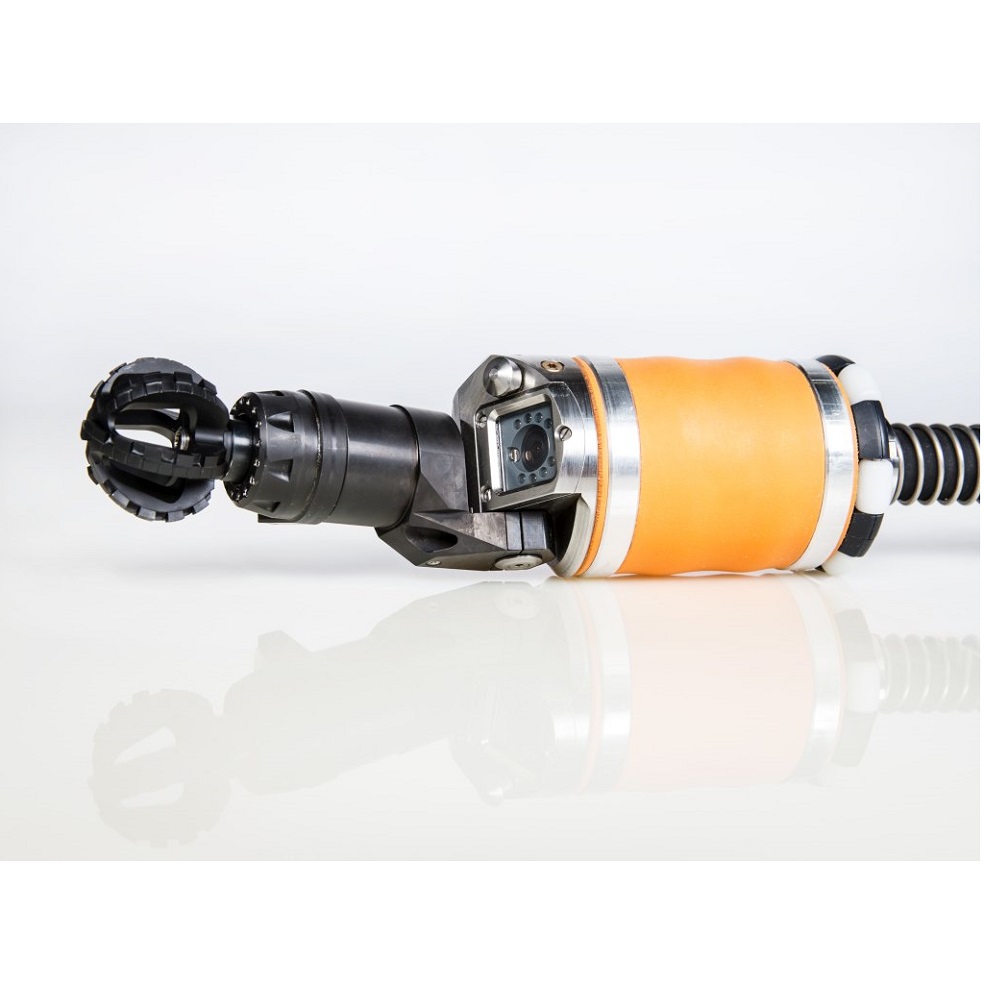

The milling robot CL80 is excellently suited for milling in house connection of DN 85-200 – with carriage DN 300. Through the mutual inflation and venting of the bubbles for tension in combination with the movement of the bubble feed, it also overcomes difficult to access pipe sections. Even 45 ° pipe bends are no obstacle. The cutter arm can be lifted, lowered and rotated in a wide range of 630 ° precisely. The powerful, pneumatically driven milling motor eliminates even larger deposits or construction iron easily. The milling head contains a color camera with LED lighting. There is also pressurized air or water for camera cleaning available. The robot is operated via a removable control case integrated in the equipment cart which on top has a touch panel, joystick and a display. Sensors and display messages inform the user about the current status of the robotic system. By simply relocating the bracing bubbles, the robot is adapted to the respective pipe diameter. The supply line of the CL80 is available with 10 m and 20 m.
