A1020 MIRA LITE THE MOST PORTABLE AND HANDY TOMOGRAPH FOR REINFORCED CONCRETE INSPECTION
• А1020 MIRA Lite – ultrasonic tomograph
• Antenna array M4002 0.05A0R220Х110PS
• Net adaptor with cable 220V-15V
• USB A – Micro B cable
• Checking sample
• Case
• Vizualisation and evaluation Software INTROVIEW – 12 month license
Sensor system

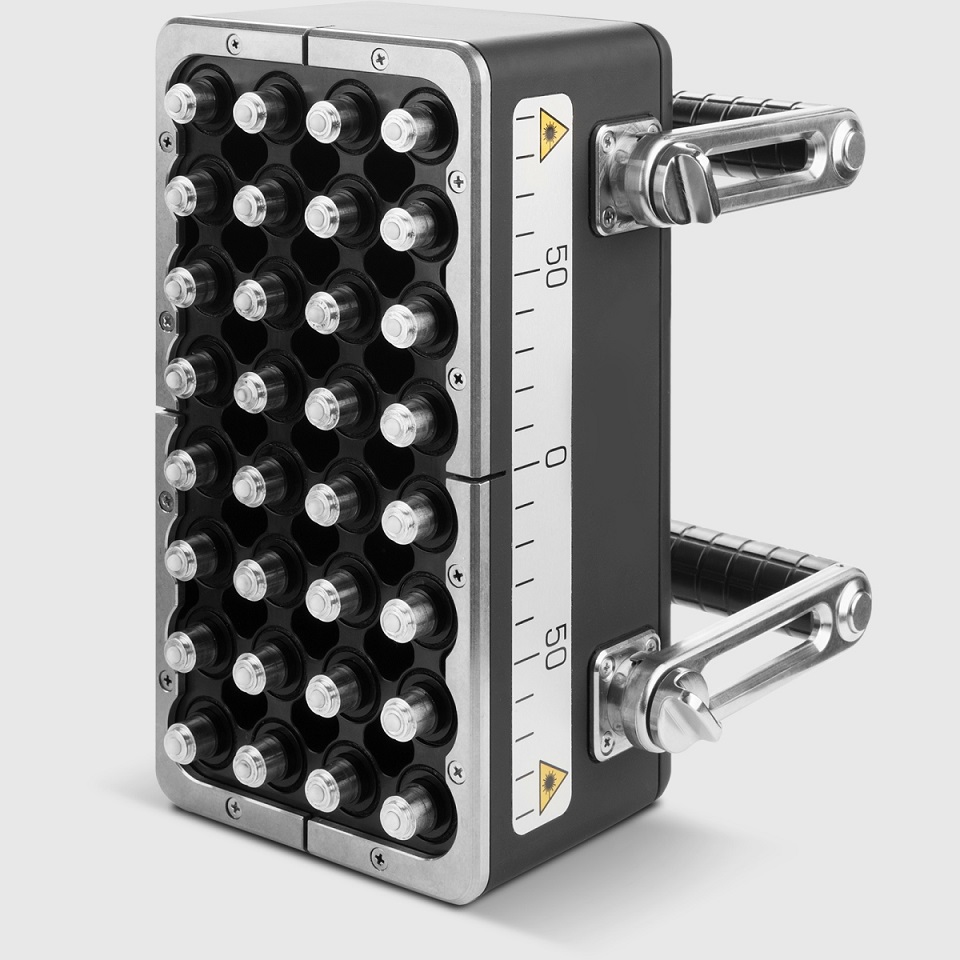

Built-in matrix antenna array
Number of transducers in the antenna array
32
Type of the transducers used in the antenna array
Low-frequency broadband transversal Dry Point Contact transducers with ceramic wear proof tips
Nominal transducer frequency
50 kHz
Analog band width
10 to 100 kHz
Maximum penetration depth in concrete
up to 1 000 mm
Maximum penetration depth in reinforcement concrete
up to 400 mm
Period of continuous operation of the instrument powered from the accumulator, no less than
8 hours
Average service life, no less than
5 years
Operating temperature
-10 to + 50 °C
Transducer array dimensions
220 x 110 x 90 mm
Electronic block dimensions
260 X 165 X 85 mm
Screen dimensions
5,7’’
Real-time visualization:
Up to 8 Hz
Number of A-Scans in thomography synthese
64
Visualization modes on board: Visualization modes by INTROVIEW:
A-Scan, cross-sectional B-Scan
Panorama B-, C-, D-Scan,
3D-View (Texture Mapping, ISO-surface, Maximum Intensity Projection)
Data interface
USB 2.0
A1020 MIRA LITE THE MOST PORTABLE AND HANDY TOMOGRAPH FOR REINFORCED CONCRETE INSPECTION
- קניה בטוחה
- הדרכה והטמעה
- משלוח מהיר
- שירות תיקונים
למה כדאי לכם לקנות אצלנו?
- קניה בטוחה
- הדרכה והטמעה
- משלוח מהיר
- תשלומים
- שירות תיקונים
- קניה בטוחה
- הדרכה והטמעה
- משלוח מהיר
- תשלומים
- שירות תיקונים
אפשר לראות מכשירים לבדיקת בטון שלנו כאן.
תבקרו בערוץ Youtube של NDT24 כאן.
Real-time B-scan image
• New generation of wear-proof DPC transducers
• Outstanding near-field resolution
• Optional Full-3D acquisition mode
Visualization by INTROVIEW®
• Integral assessment by 3D imaging
• Novel crack sizing functionality

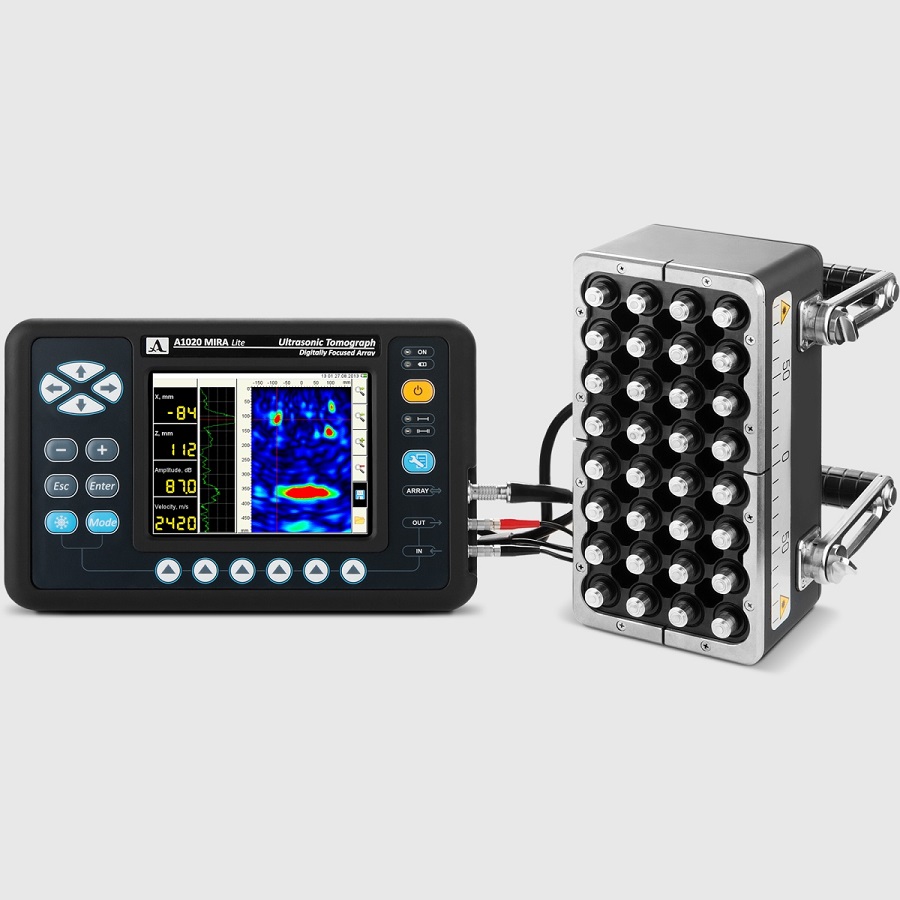

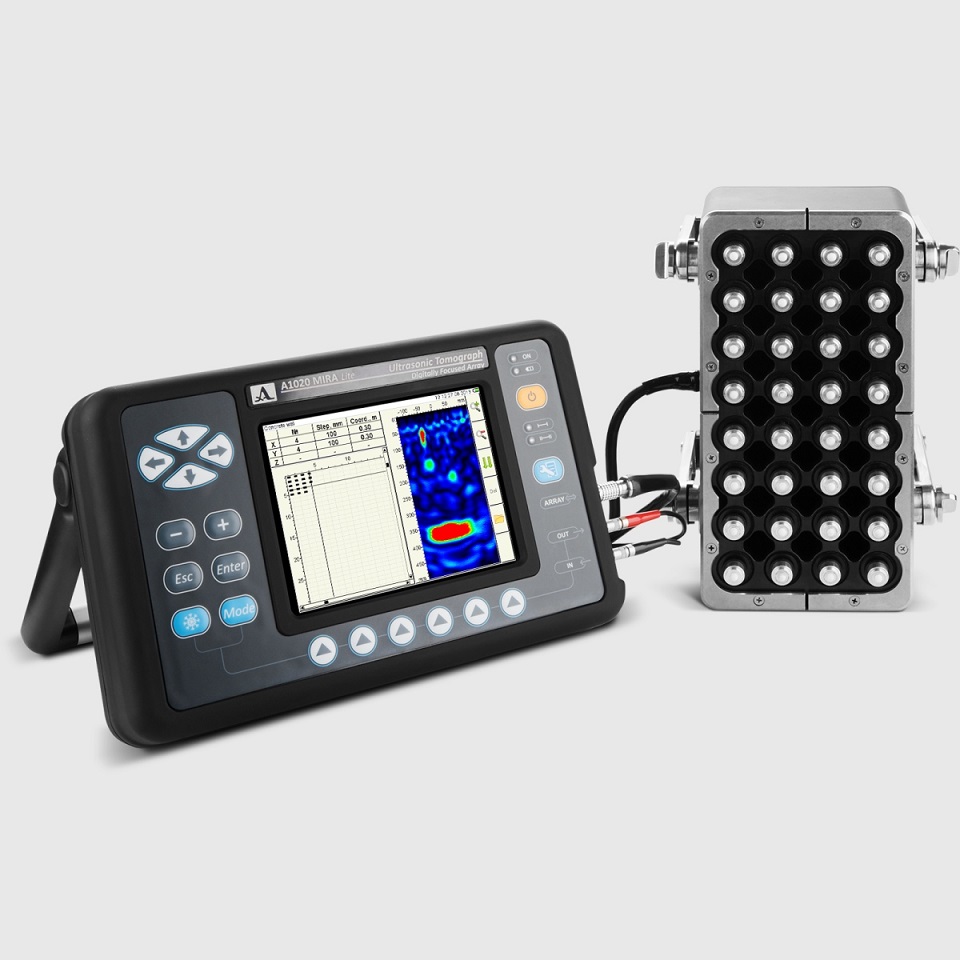

A1020 MIRA-lite is a low-frequency ultrasonic tomography system for manual ultrasonic testing, 2D and 3D visualization and quality evaluation of concrete and reinforced concrete structures.
