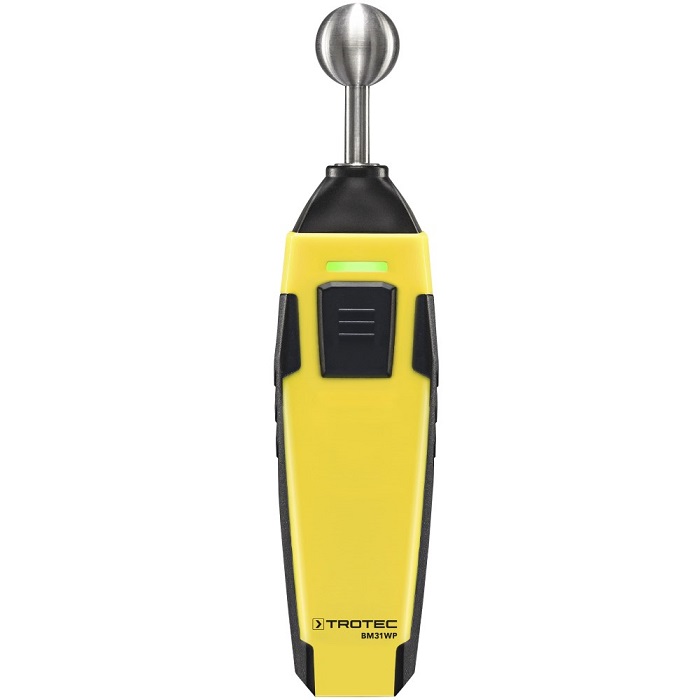

BM31WP Moisture Indicator with Smartphone Operation

Material moisture measuring device as appSensor with smartphone operation'

The appSensor BM31WP is an electronic moisture indicator that enables you to capacitive determine moisture on the close to surface of wall, ground or ceiling non-destructively in combination with MultiMeasure Mobile App.

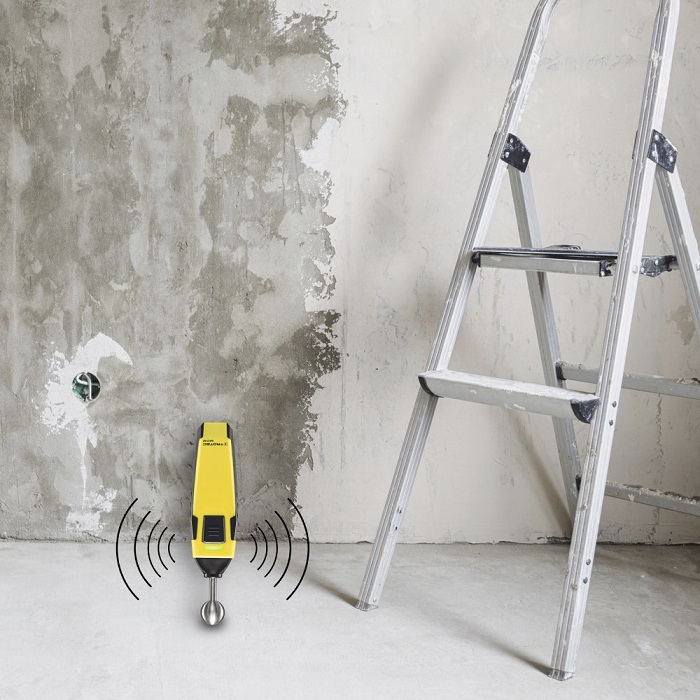

The measuring device BM31WP is immediately ready for use. It can easily be connected to the app and allows you a quick and easy localization of moisture distribution close of the surface of wall, ground or ceiling – and it is absolutely non-destructive.

Not only is the BM31WP able to quickly provide a wide range of near-surface material moisture values, this appSensor is also particularly well-suited for preliminary testing of building materials for CM measurements.

Compared to non-app-supported moisture meters, the users of the BM31WP benefit from smart combination of appSensor and the app-free app, Multimeasure Mobile, provides many additional benefits in terms of flexibility, analysis, data control, and documentation

Compare directly in the app different humidity measurements of an object, which were created at different times. Or use the measured values ​​in combination for differentiated analyzes directly on site.

Useful additional features such as the alarm function, the export of humidity readings to a further analysis software as well as the creation of a report complete the universal application possibilities of the BM31WP and makes this measuring device to a valuable tool in structure diagnostic tasks.

Moisture matrix made easy, also photo linked

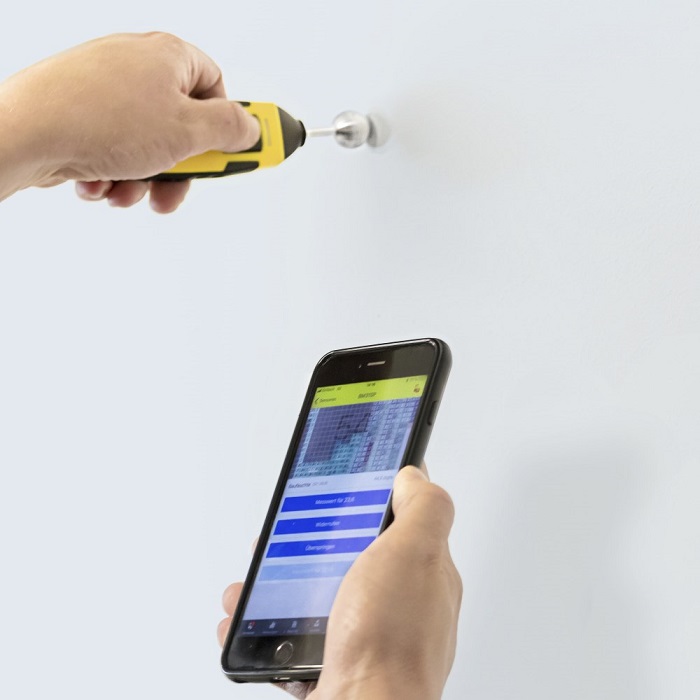

With the MultiMeasure Mobile App, you can not only automatically display the MIN, MAX and average values ​​or mark individual measured values ​​directly in a picture, but also create, save and send elaborate graphical representations in the form of a photo-linked moisture matrix.

The grid to be measured can be backed up with a real image and later output for documentation as a superimposed graphic with the moisture matrix – for example for your measurement report, which you can generate and send directly from the app.

WHAT IS AN APPSENSOR?
Trotec appSensors are compact precision measuring instruments with high-quality sensors which are designed to save energy and space and do not have any evaluation electronics or display units, as the operation and data evaluation of the devices are almost completely done via the connected smartphone. In combination with the free MultiMeasure Mobile app this instrument concept can convince with many advantages.

All appSensors by Trotec offers these advantages:

  • Professional sensor technology for precise measurement results
  • Easy app connection via Bluetooth with optical connection confirmation via LED on the device
  • Meter control and data display wireless via app
  • Easy data acquisition even at remote locations, as the values ​​do not have to be read directly on the meter
  • Additional determination and display of minimum value, maximum value or average value
  • Measurement value keeping, logging and alarm function
  • Hand strap for secure handling included
  • Practice-optimized German industrial design – registered design

WHY APPSENSORS? AREN'T THERE MANY MEASURING APPS ALREADY?Of course there are numerous apps that use the built-in smartphones electronic components for measurements or derived calculations such as the built-in microphone, the gyroscope, the camera or other components. However these components were not designed for precise measurement studies, but primarily for optimal use of the mobile device.

For one thing the results obtained are not comparable with the results of dedicated sensors designed for measurement applications. On the other hand there is not a suitable electronic component in the existing smartphone for every measuring task, for example for contact moisture measurement or contactless temperature measurement.

Trotec appSensors, on the other hand, contain professional sensors for accurate measurement results and that's exactly what they have been designed for. For professional measurements, use the clever combination of appSensor and MultiMeasure Mobile – the free app for iOS and Android.

MULTIMEASURE MOBILE – ALL APP BENEFITS OVERVIEW

To use this AppSensors on your smartphone you need MultiMeasure Mobile – a free app for controlling, evaluating and displaying data from all Trotec app sensors connected to your mobile device.

MultiMeasure Mobile offers numerous benefits for you:

  • Auto detection for app sensors
  • Parallel operation of multiple app sensors
  • Fast and intuitive navigation
  • Measured value display numerically or as diagram / matrix
  • Integrated report function for on-site documentation
  • Organizer function for measurement data and documents
  • Customer management already integrated
  • Varied analysis options directly in the app
  • Photo-linked measured value storage
  • Matrix measurements, also photo linked
  • Full data synchronization to MultiMeasure Professional via Cloud

MultiMeasure Mobile turns your mobile device into a multifunctional measurement data manager.All app sensors are automatically detected by MultiMeasure Mobile and can be connected to the app via Bluetooth and read out. The operation is just as simple and intuitive as the installation: Simply download MultiMeasure Mobile to your mobile device for free – click here for the download page for iOS or Android.

BM31WP – BENEFITS IN PRACTICE:

  • Fast and non-destructive indication of moisture distribution in near-surface areas
  • Useful pre-tester for CM measurements
  • High-quality sensors and numerous measuring functions
  • Smart combination of appSensor and the app Multimeasure Mobile
  • Automatic shutdown

קטגוריה

שתפו את המוצר

Facebook
Email
LinkedIn
WhatsApp

למה כדאי לכם לקנות אצלנו?

מפרט טכני מלא:

אפשר לראות מדי לחות שלנו כאן.

תבקרו בערוץ Youtube של NDT24 כאן.

TECHNICAL DATA
General information
Article number 3.510.206.031
Material moisture [digits]
Min. measuring range [Digit] 0
Resolution [Digit] 0.1
Measuring principle Dielectric / capacitive
Max. measuring range [Digit] 100
Surrounding conditions
Operation – min. temperature [°C] 0
Operation – max. temperature [°C] 50
Dimensions
Length (packaging excluded) [mm] 22
Width (packaging excluded) [mm] 36
Height (packaging excluded) [mm] 160
Weight
(packaging excluded) [kg] 0.093
