CM COMPLETE SET CLASSIC

The classic amongst the CM measuring instruments

With the CM Classic you have a solid, professional measurement instrument – equipped with a mechanic manometer with overpressure protection up to 2.5 bar.

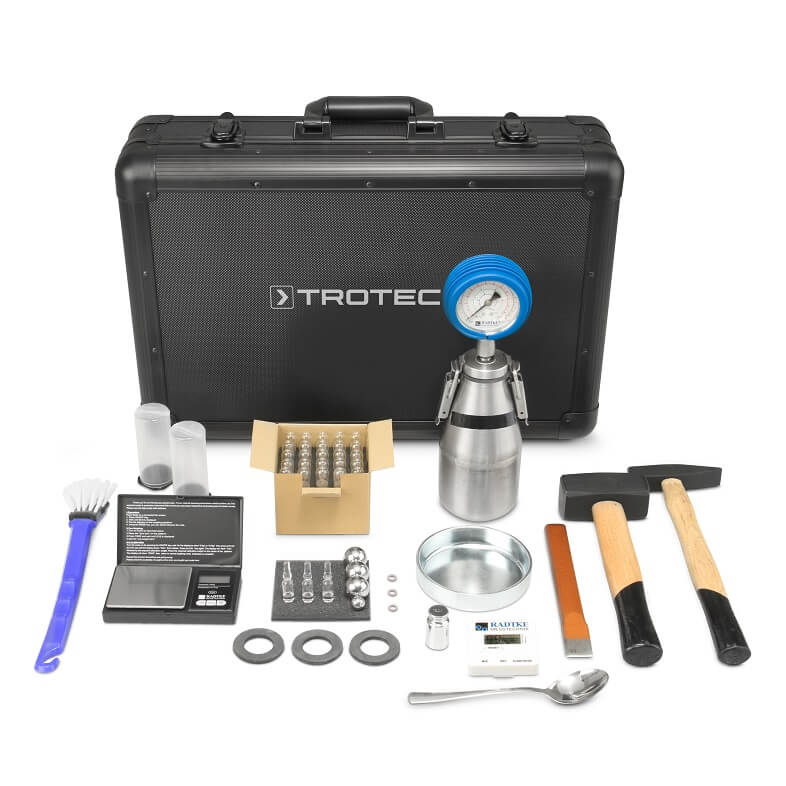

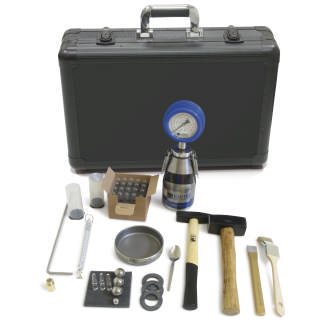

You get the CM Classic at Trotec in a complete set, consisting of measurement instrument and CM-Basic Set.

Content of the CM-Basic Set

  1. Digital scale
    • Weighing capacity 150 g
    • Minimum graduation 0.1 g
    • Indication stabilisation within 3 seconds
    • Mechanical protection via weighing plate covers
    • Overload and undervoltage indication
    • Auto switch-off
    • Calibration weight (100 g) and batteries supplied (3 1.5 V type AAA)
  2. Weighing beakers (2 pc.)
    Weighed portion can be filled directly into the cylinder – no more spilling, how convenient
  3. Full tool kit for sample preparation
  4. Ball set with 4 steel balls (starting, blending and grinding effect)
  5. 20 pieces of carbide ampoules
  6. 3 test ampoules with 1.00 g of water for cylinder leak test/pressure gauge test
  7. 3 spare seals each for pressure gauge and pressure cylinder, spoon and cleaning brush
  8. Lucid operating instructions and quick start guide
  9. Metal carrying case – everything stays in its place, protected for transport

קטגוריה

שתפו את המוצר

Facebook
Email
LinkedIn
WhatsApp

למה כדאי לכם לקנות אצלנו?

מפרט טכני מלא:

אפשר לראות מדי לחות שלנו כאן.

תבקרו בערוץ Youtube של NDT24 כאן.

TECHNICAL DATA
General information
Article number ZB9100100
Pressure [bar]
Accuracy class pressure gauge ± 1.0 % typ. ± 25 mbar (absolute, over the entire pressure range)
Overload-proof to 3.0
Interfaces
RS232-TTL or RS232-V.24
RS485 serial
Display
LCD
Touch
Type of protection
IP32
IP64
Device control
Membrane keyboard
Housing design
Plastic
Maintenance
Regular checks required
Very low
Power supply
Internal via battery
External via car power adapter
Internally via battery
Surrounding conditions
Min. operating temperature [°C] -10
Max. operating temperature [°C] 80
Dimensions
Length (packaging excluded) [mm] 140
Width (packaging excluded) [mm] 520
Height (packaging excluded) [mm] 360
Weight
(packaging excluded) [kg] 8.3
