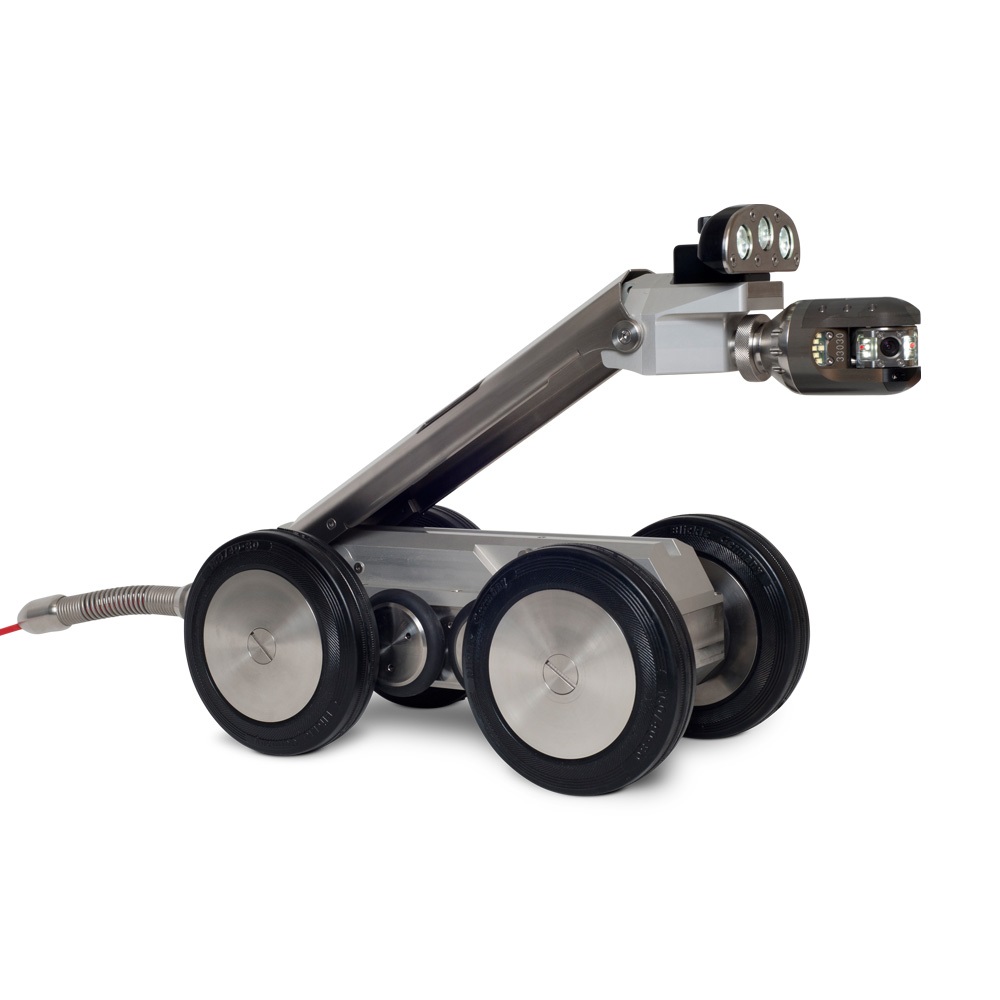

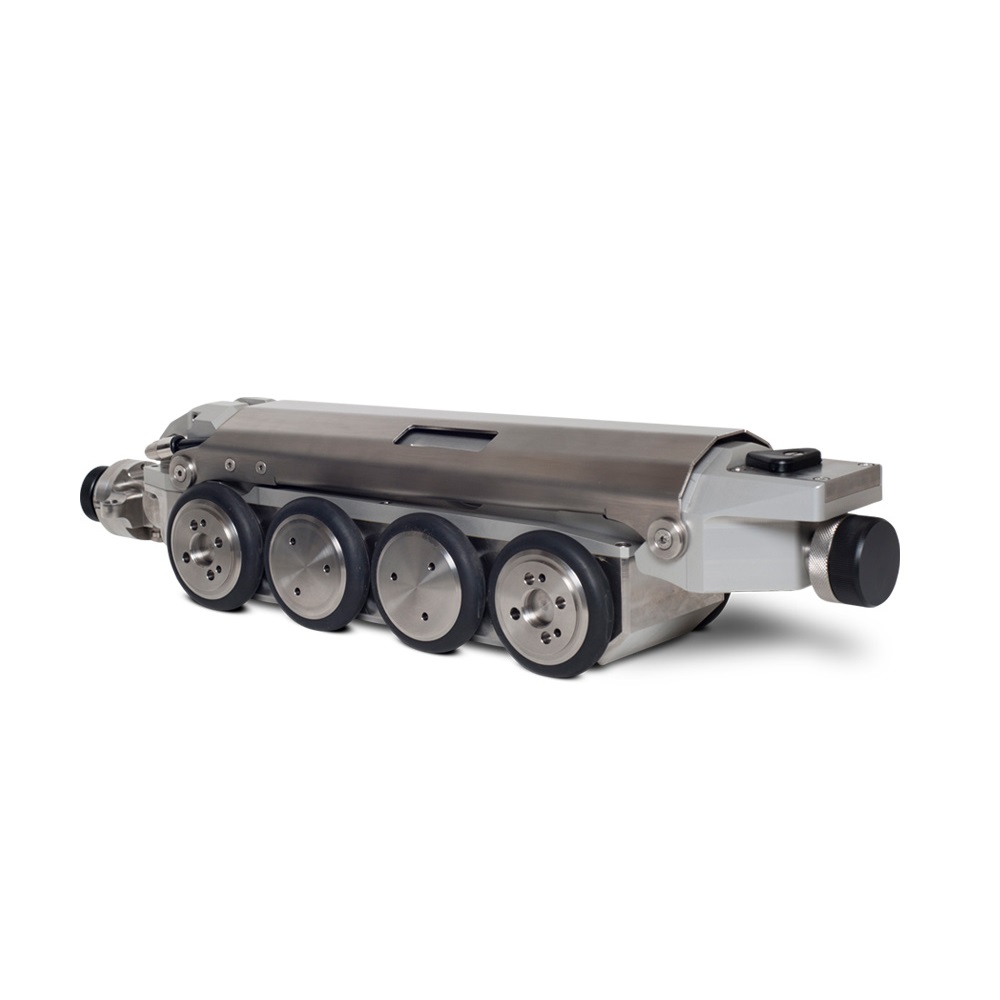

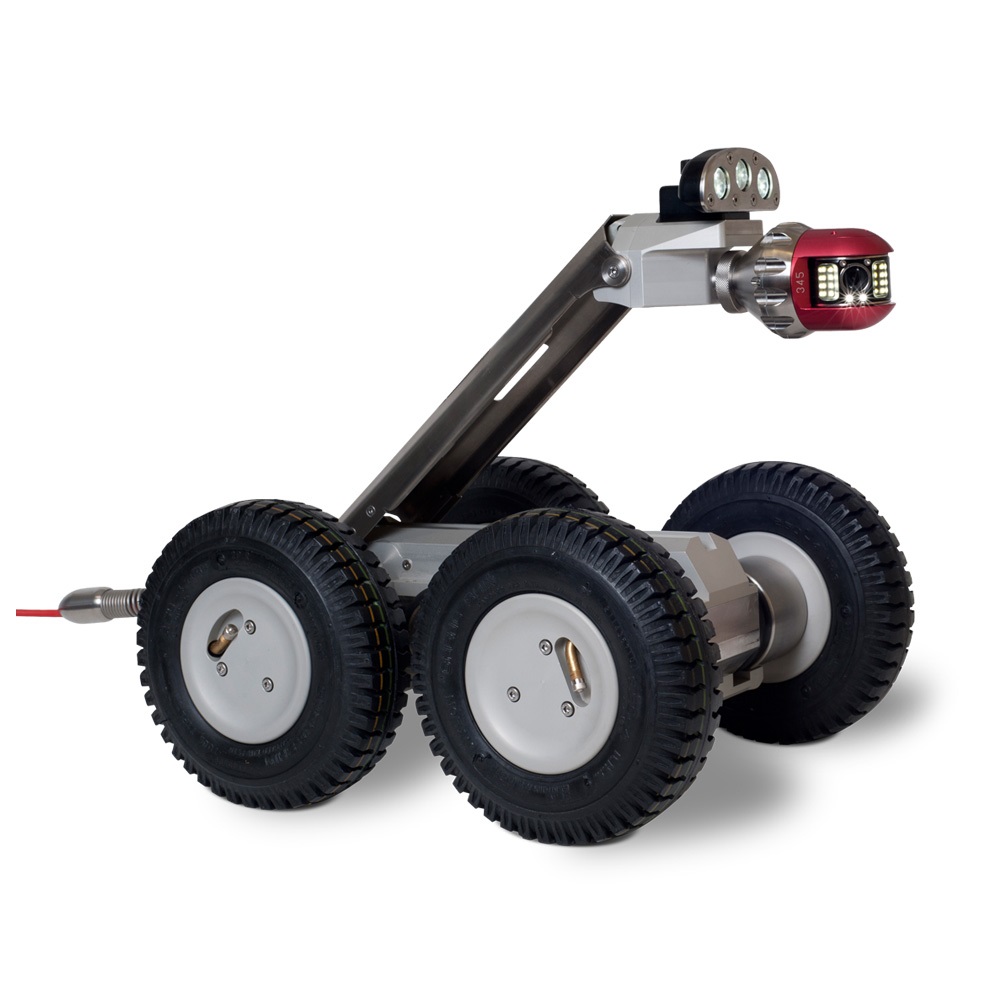

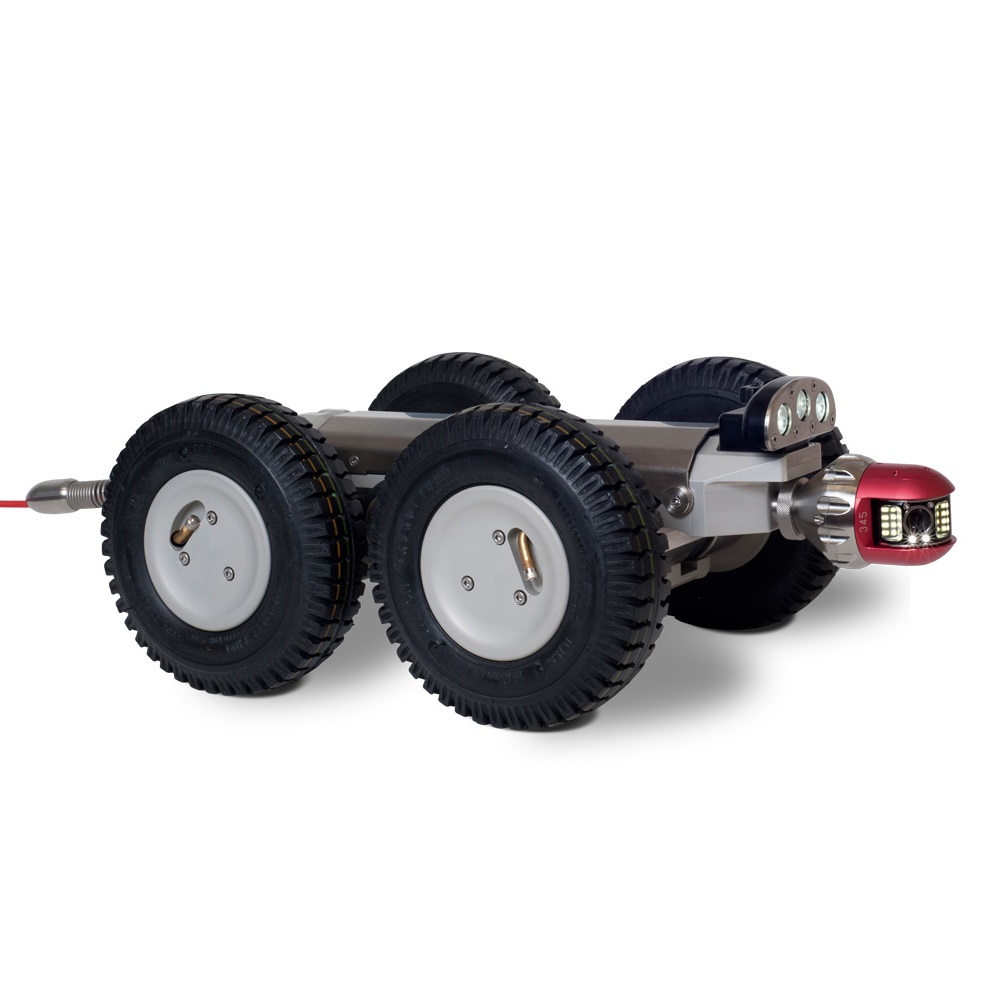

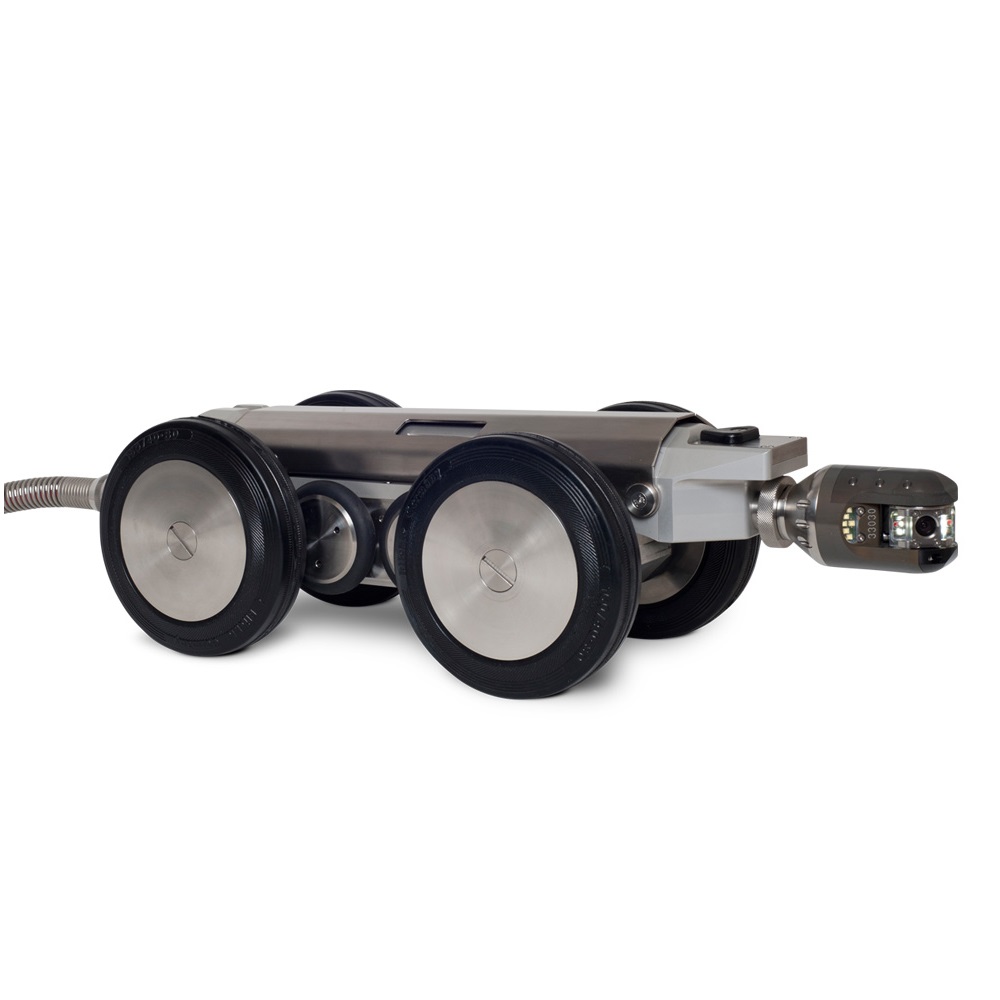

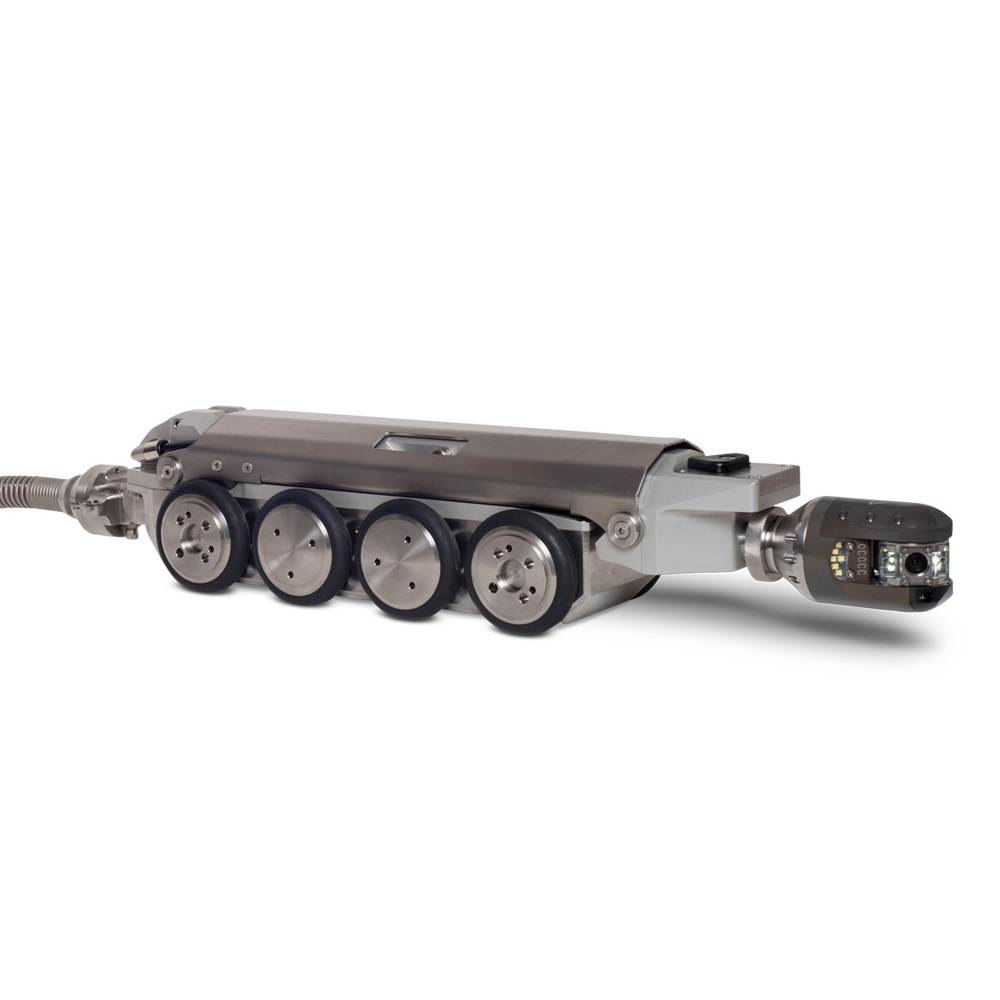

רובוט צילום צנרת FWL-150

A extremely solid and efficacy steerable crawler. Thru its modular architecture, this crawler can be set up for various tasks.

• usable from DN 150 to DN 1200
• material: Aluminum / stainless steel
• engine: 2 x BLDC-engine at 50 Watt
• impetus: 8 powered wheels
• steerable
• camera elevator: electrical
• pressure-proof till 1 bar
• internal pressure surveillance
• tilt measurement long axis
• tilt measurement lateral axis
• power supply via control unit
• dimensions: 540 x 130 x 120 mm
• weight: 18,5 kg

מערכת תיעוד MSE500 עבור רובוט צילום צנרת

• Compact. Mobile. Powerful.
• Our professional control case MSE-500 –
• Your central control and documentation unit
• for all our cameras and crawlers.
• The high resolution and daylight suitable 12.4" TFT display provides brillant picture quality and together with the ergonomically located controls allows a pleasant work
• Via the existing USB ports devices such as keyboard or mouse can be used with the control case
• Videos and pictures are saved on the internal memory and can be easily exported to an USB device
• compatible and expandable with all our cameras / crawlers, etc. …
• high resolution 12.4" TFT display (daylight suitable). Resolution: 1024 x 768 pixel
• touchscreen
• powerful industrial PC with a 256 GB solid state harddrive
• expandable and sustainable system due to software updates
• interfaces: 2 x USB 2.0 , 1 x RJ45, 1 x Video IN, 1 x Video OUT, 1 x HDMI
