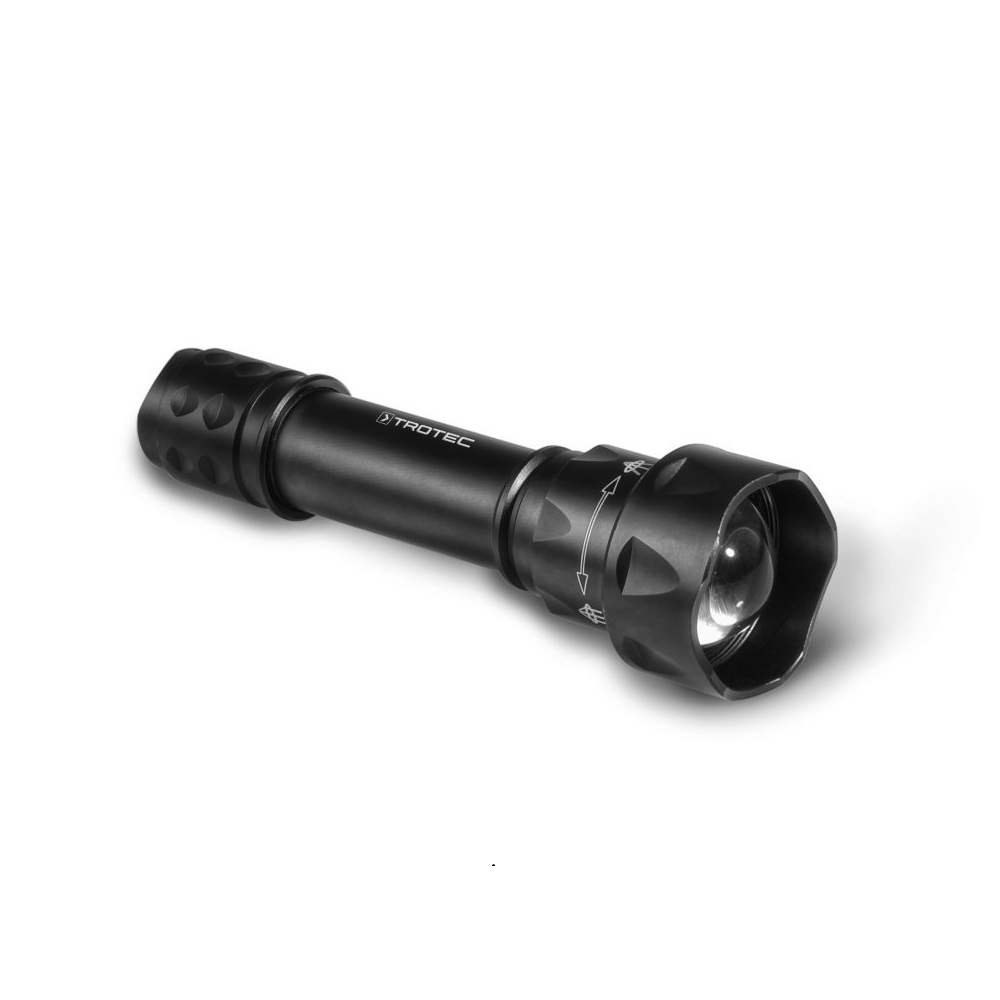

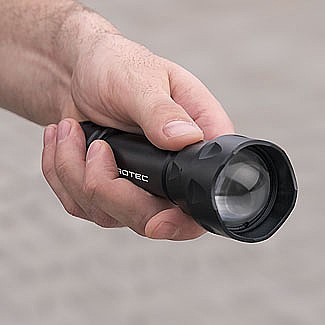

UV-Torch Light 15F

The ultra compact UV-A hand lamp provides maximum power immediately after switching on and can thus be quickly used to control even hard to reach areas.

Unlike conventional UV Flashlight is, beside the point light operation, additionally it opens the possibility to focus the radiation cone on floodlight.

The focus ring is infinitely adjustable. This brings additional applications with it which opens for other applications in practice!

Whether for leak detection in buildings, some areas of forensics, or non-destructive testing of materials in the industry – the rapidly deployable UV Torch Light 15F offers the user a high degree of flexibility.

Overview of technical data:

Illuminant

• Type: LED
• Wave length: UV-A, peak at 365 nm
• Lifetime: approx. 6.000 hrs

Radiation intensity (at a distance of 38 cm)

• Radiation cone XL (Ø 250 mm): 2.890 µW/cm²
• Radiation cone L (Ø 150 mm): 10.030 µW/cm²
• Radiation cone M (Ø 100 mm): 22.560 µW/cm²
• Radiation cone S (Ø 60 mm): 38.420 µW/cm²
• LED light spot (Ø 30 mm): 55.480 µW/cm²

Energy supply

• Accumulator: integrated
• Battery type: 3,7 V Li-Ion-battery
• Operating time: > 2 hrs
• Lifetime: ≈ 3,5 hrs

More info

• Safenty: IPX7
• Lead time: < 1 s
• Handle Type: flashlight
• Weight: approx. 232 g (incl. battery)
• Housing: anodized aluminum
