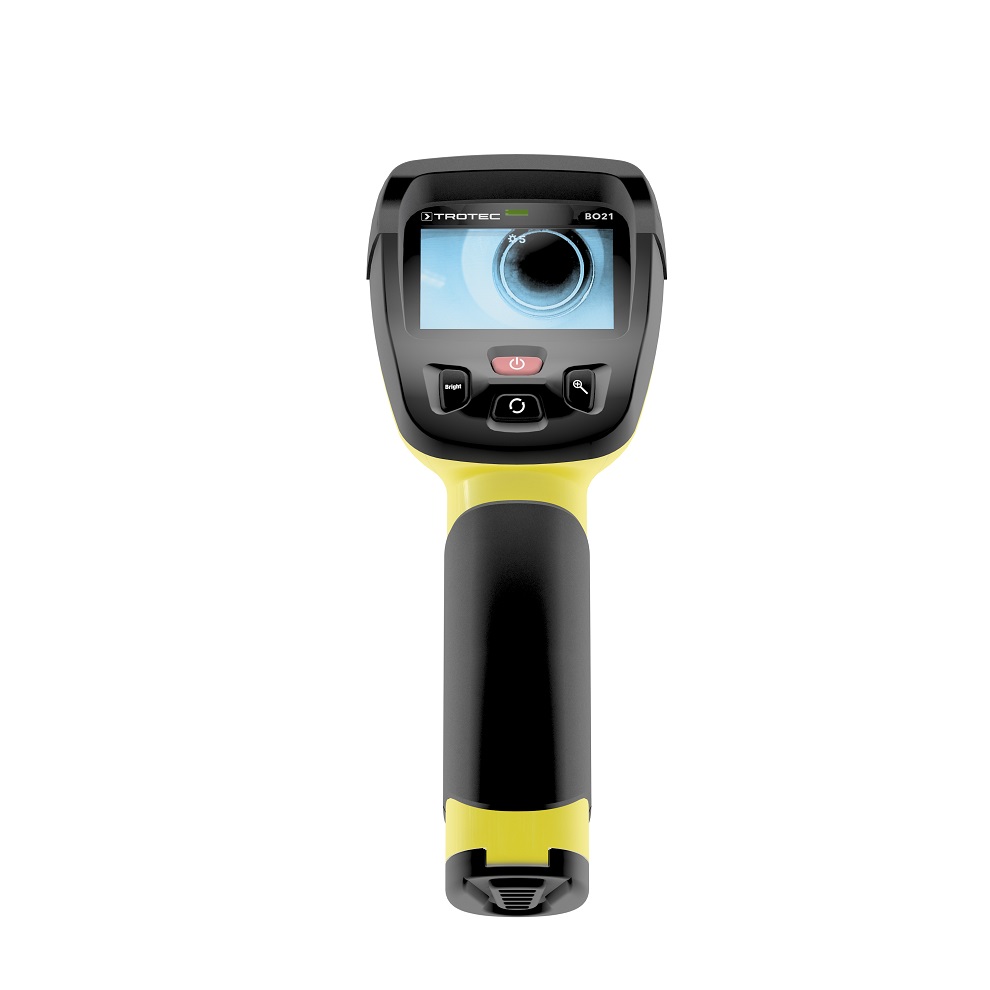

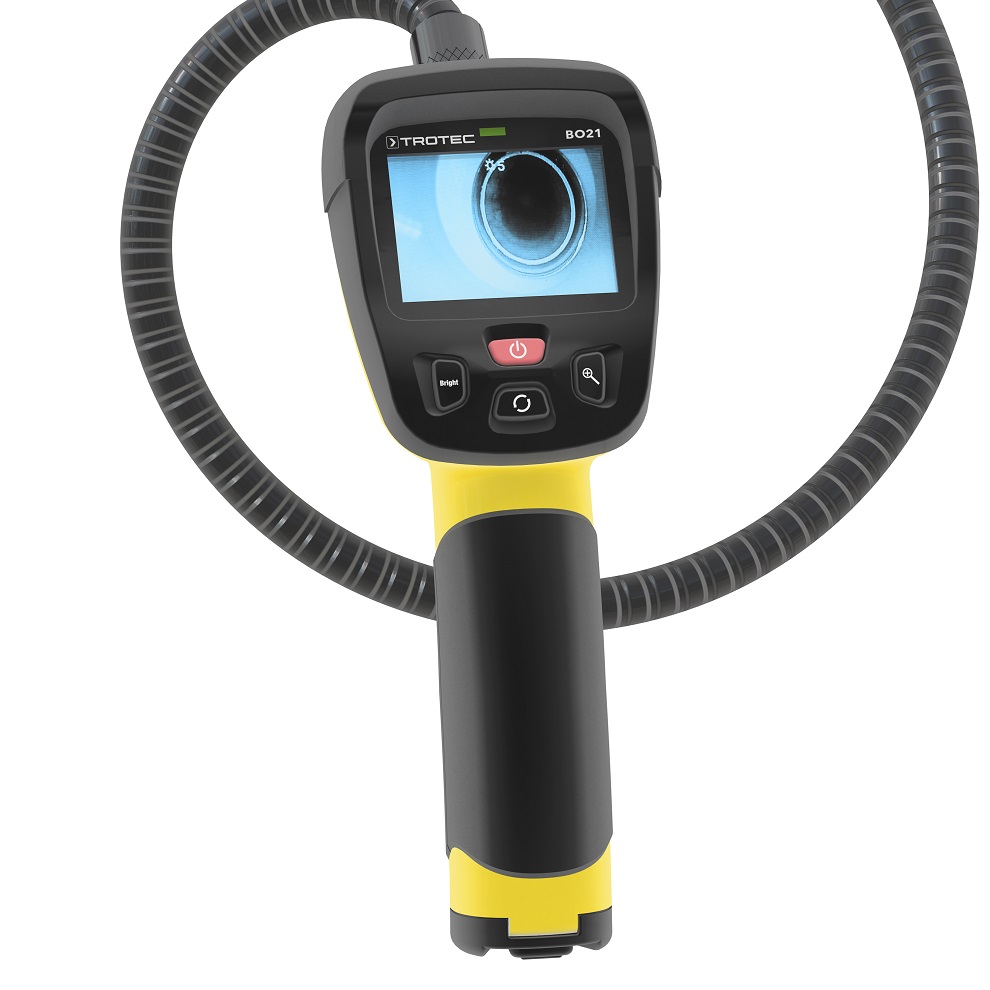

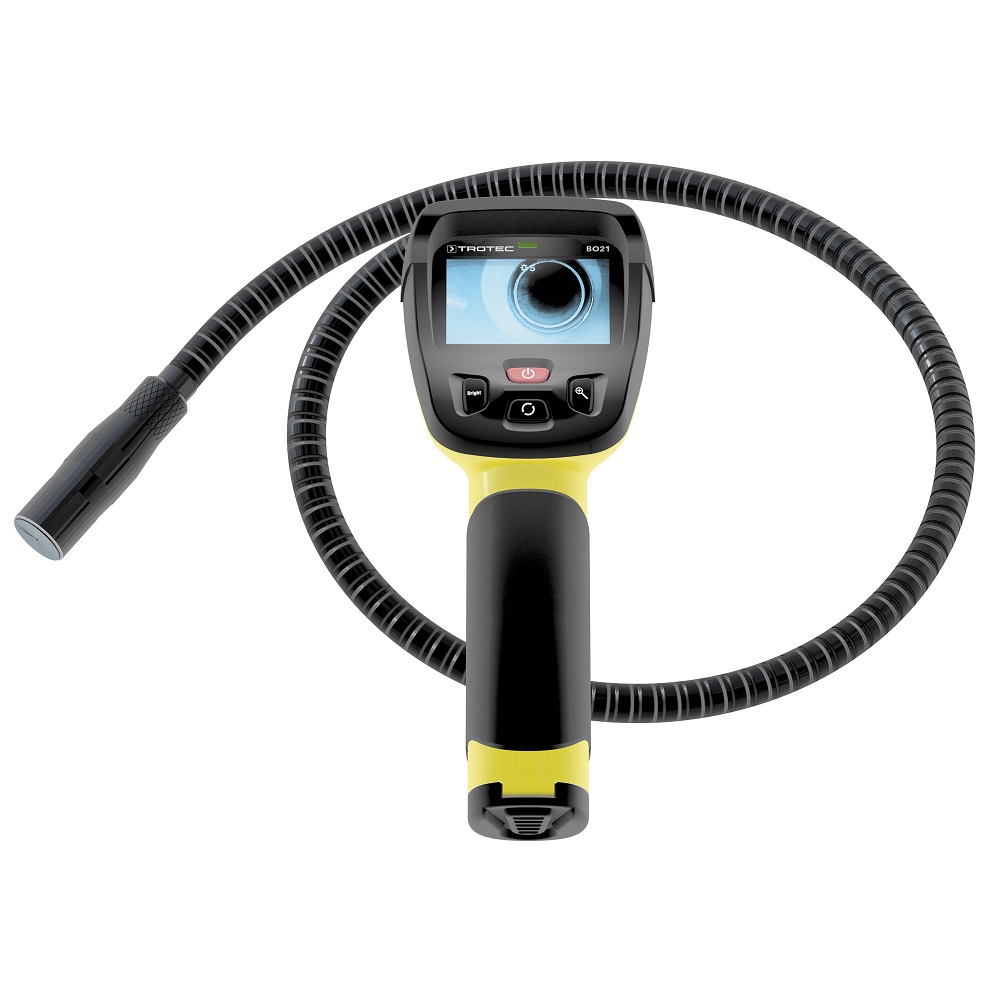

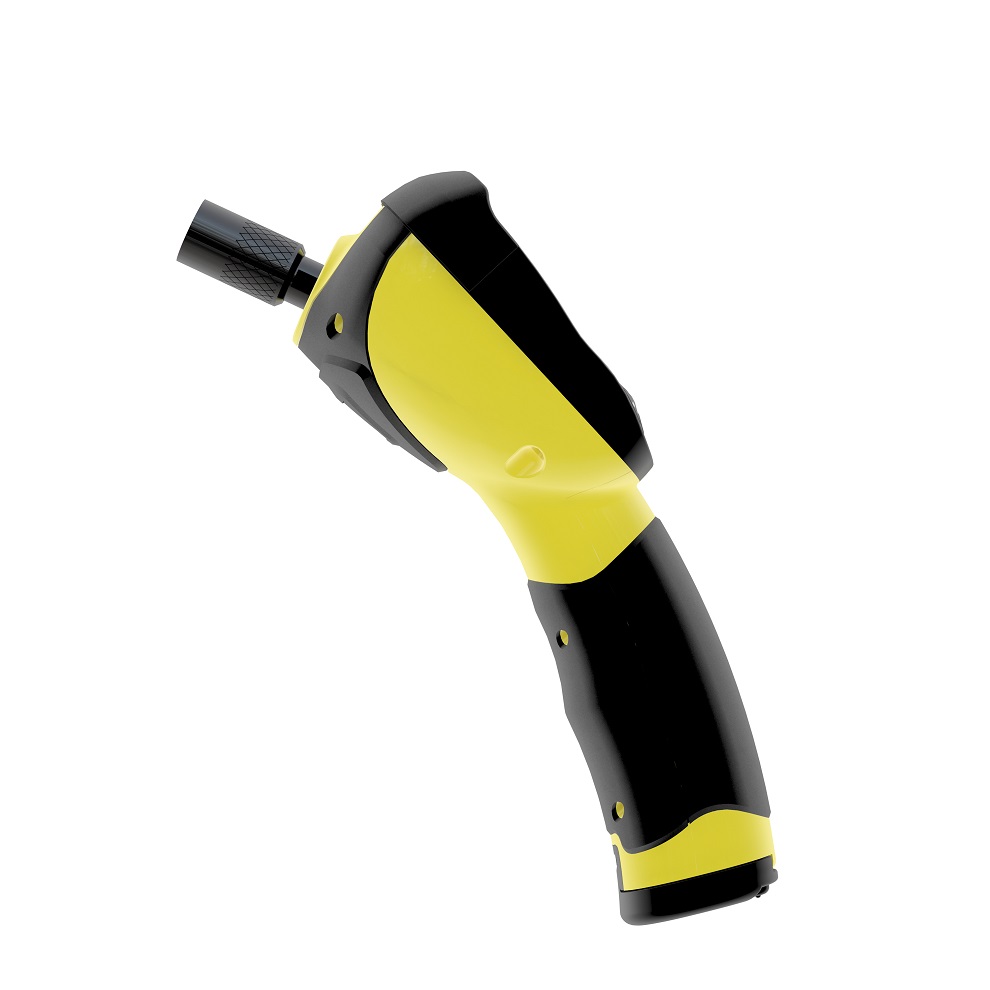

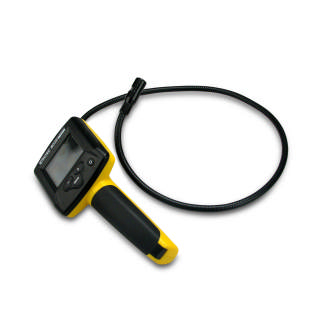

The BO21 is a multipurpose video scope for rapid endoscopic visual inspections in hard to view areas or cavities .

In the top of the flexible gooseneck probe a waterproof color camera with adjustable lighting is integrated.

The powerful quad- LED illumination of the easy to handle BO21 enables optimally illuminated inspection images in any situations, that are displayed in brilliant color display on the LCD monitor of BO21.

Thanks to the 180 ° image rotation function, inspection views in a fairly upright position are also in very narrow areas possible.

Practical: Included with the BO21 helpful tools are included, with which you can extend the range of your BO21 addition, such as salvage instrument for loose parts or sampling.

Benefits in practise:

• Ready to use – just plug in and get started
• Robust videoscope probe with fixed focus lens and waterproof camera head (Protection IP67)
• Powerful quad – LED illumination with lighting controller
• 180° image rotation function
• Flexible, rigid gooseneck probe
• Mobile, off-grid use
• Automatic switch off function

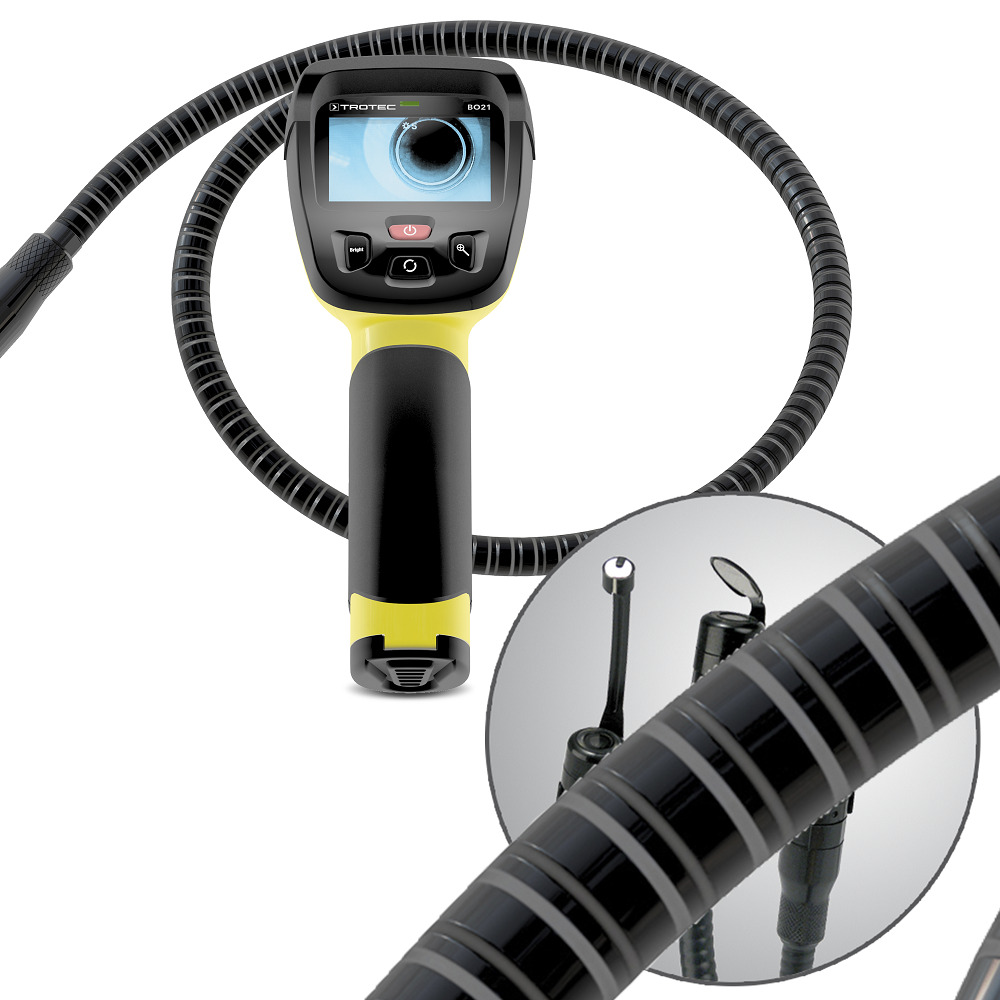

• Includes side-view mirror, hook and magnet attachment
• Best value for money
• Various interchangeable probes available as optional accessory

Here are some technical data of the BO21:

Probe: ø 17 mm / length 1,000 mm

• Focus area: 50 – 150 mm
• Backlight type: LED Quad
• Field of view: 68°
• Display (Resolution): 2.4 inch LCD (480 x 234 pixels)
• Zoom: 2x
• Operating / storage temperature: -10 °C up to +50 °C
• Functions: brightness control, 180 ° image rotation function, automatic shutdown
• Power supply: 4x LR6 AA 1.5 V
• Weight: 580 g
