מד לחות Trotec BM40

Non-destructive moisture measurement of wood and building moisture

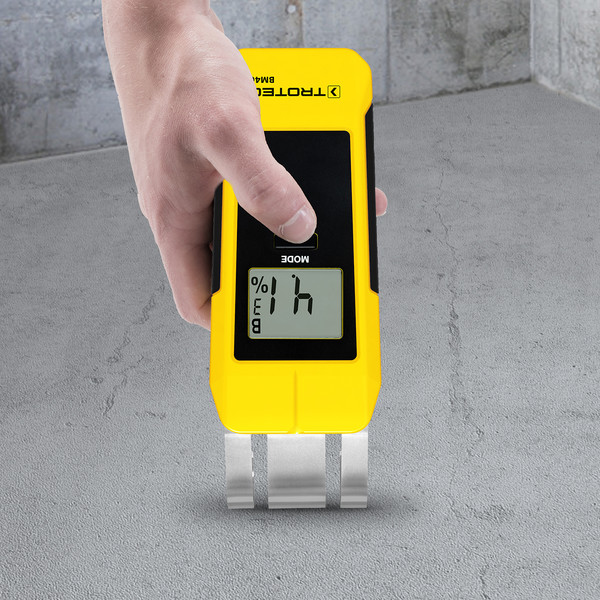

Anyone who wants to measure moisture quickly or, above all, non-destructively in materials such as wood or mineral building materials or wants to monitor the drying process will find his reliable partner in the BM40. Simply place the measuring electrodes of the device on the material to be tested.

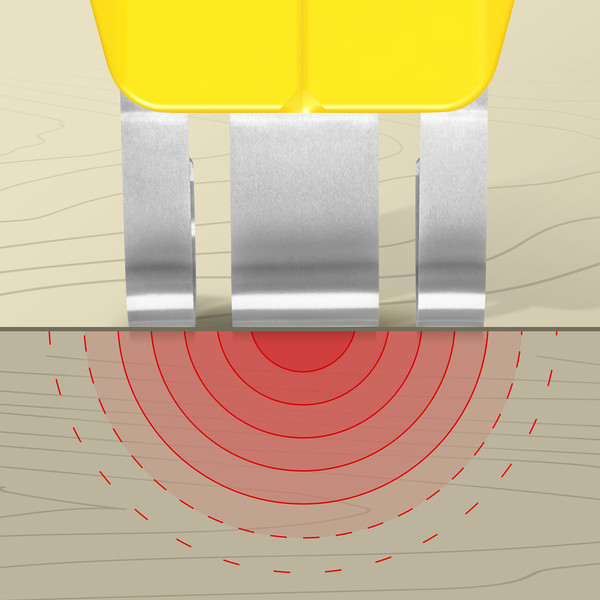

Moisture measurement is absolutely non-destructive via capacitive sensors using the dielectric measuring method, since no electrodes or probes need to be introduced into the material to be measured. For increased accuracy of the readings given directly in% by weight, correction factors are available for the different types of material.

The ready-to-use BM40 convinces during the measurement due to its easy handling and fast reaction times.

An ambient temperature measurement, the battery status display and the energy-saving auto-off function complete the versatile scope of performance.

Benefits in practice:

  • Development, design, manufacturing: 100 % Trotec
  • Fast and non-destructive measurement of moisture in mineral building materials and wood

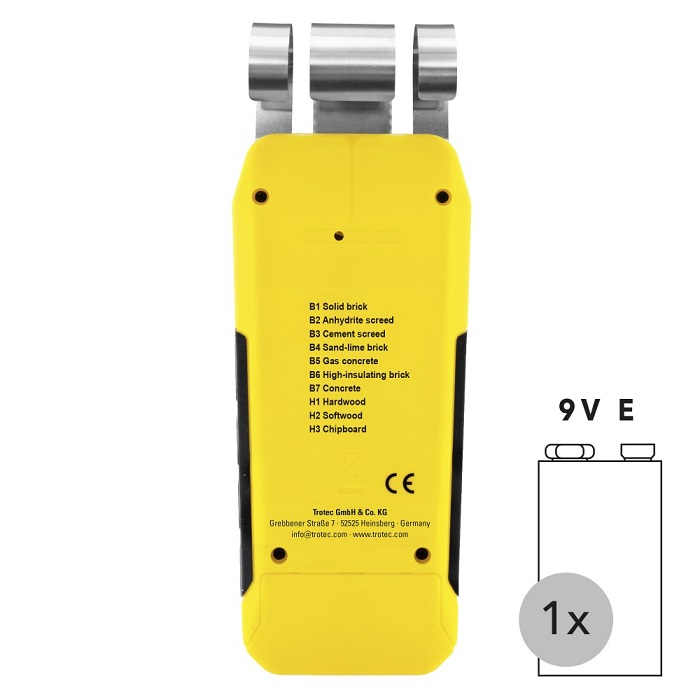

  • 10 adjustable material curves for the most important building materials and types of wood
  • Incl. ambient temperature measurement
  • Easy operation with just one button
  • Direct measured value display in %
  • Battery status display
  • Automatic shutdown
  • Practically optimized German industrial design – protected design

Here are some technical details of the BM40 at a glance:

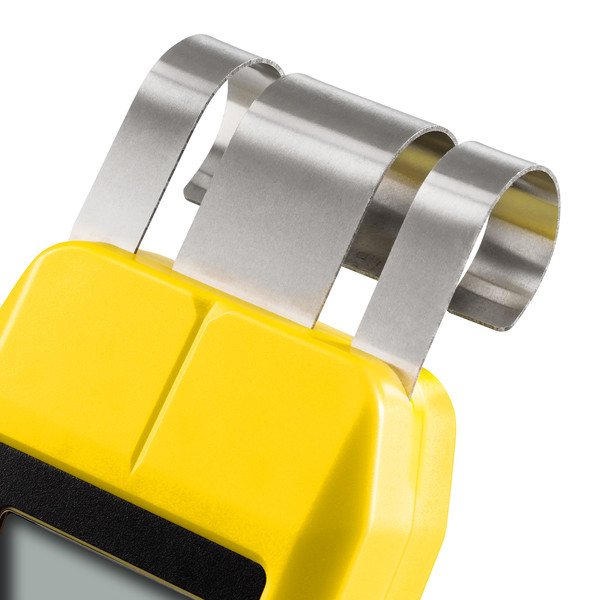

  • Electrode length: approx. 40 mm
  • Measuring principle: dielectric
  • Working ambient conditions: -10 to +50 °C / max. 85 % r.H
  • Storage ambient conditions: -10 to +55 °C
  • Penetration depth: 0 – 50 mm, non-destructive
  • Power supply: 9 V battery
  • Dimension L x W x H (in mm): 168 x 35 x 75
  • Weight: 220 g

קטגוריה

שתפו את המוצר

Facebook
Email
LinkedIn
WhatsApp

למה כדאי לכם לקנות אצלנו?

מפרט טכני מלא:

אפשר לראות מדי לחות שלנו כאן.

תבקרו בערוץ Youtube של NDT24 כאן.

TECHNICAL DATA
General information
Article number 3.510.205.035
Measuring principle
Electrode length [mm] 40
Min. penetration depth (non-destructive) [mm] 0
Max. penetration depth (non-destructive) [mm] 50
Solid brick
Min. measuring range [%] 0
Messbereich max. [%] 20
Accuracy [%] < 2
Anhydrite screed
Min. measuring range [%] 0
Max. measuring range [%] 20
Accuracy [%] < 2
Cement screed
Min. measuring range [%] 0
Max. measuring range [%] 20
Accuracy [%] < 2
Sand-lime brick
Min. measuring range [%] 0
Max. measuring range [%] 20
Accuracy [%] < 2
Gas concrete
Min. measuring range [%] 0
Max. measuring range [%] 20
Accuracy [%] <2 (with measured value > 8 %)
High-insulating brick
Min. measuring range [%] 0
Max. measuring range [%] 20
Accuracy [%] < 3
Concrete
Min. measuring range [%] 0
Max. measuring range [%] 20
Accuracy [%] < 3
Hardwood
Min. measuring range [%] 0
Max. measuring range [%] 50
Accuracy [%] <5 (with measured value > 9 %)
Softwood
Min. measuring range [%] 0
Max. measuring range [%] 50
Accuracy [%] <5 (with measured value > 9 %)
Chipboard
Min. measuring range [%] 0
Max. measuring range [%] 50
Accuracy [%] <5 (with measured value > 9 %)
Temperature
Min. temperature [°C] -10
Max. temperature [°C] 55
Accuracy – Approx. temperature ± [°C] 2
Resolution [°C] 1
Resolution
Wood [%] 0.1
Mineral building materials [%] 0.1
Measuring rate
Material moisture 0.5 s
Device control
Membrane keyboard
Display
LCD
Monochrome
Housing design
Plastic
Surrounding conditions
Operation – min. temperature [°C] -5
Operation – max. temperature [°C] 50
Operation – max. relative humidity [% RH] 85
Storage – min. temperature [°C] -10
Storage – max. temperature [°C] 55
Power supply
Internal (battery)
Internal (battery) 1 x 9 V block battery
Dimensions
Length (packaging excluded) [mm] 168
Width (packaging excluded) [mm] 35
Height (packaging excluded) [mm] 75
Weight
(packaging excluded) [kg] 0.22
