מדי לחות TROTEC BM22WP

BM22WP Moisture Meter with Smartphone Operation

Wood and building moisture measuring device as appSensor with smartphone operation

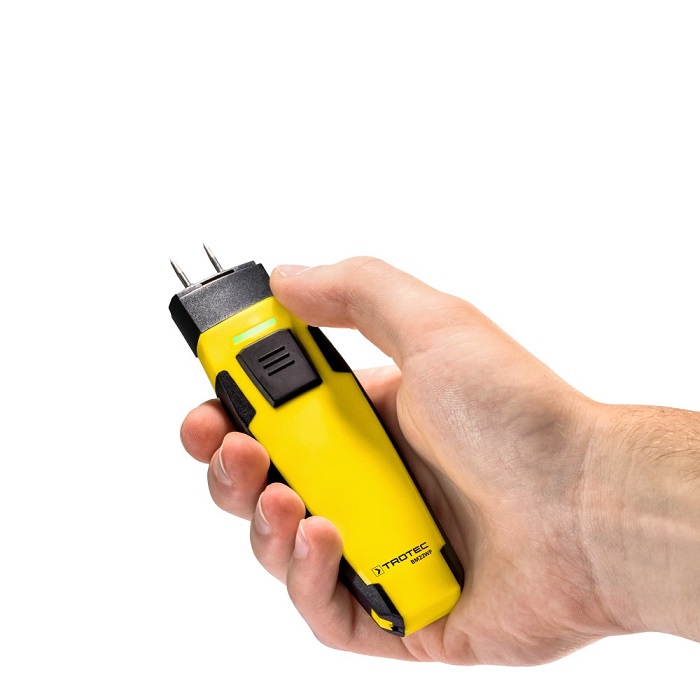

The appSensor BM22WP is an electronic moisture meter that enables you to measure wood and building moisture using resistance method in combination with MultiMeasure Mobile App.

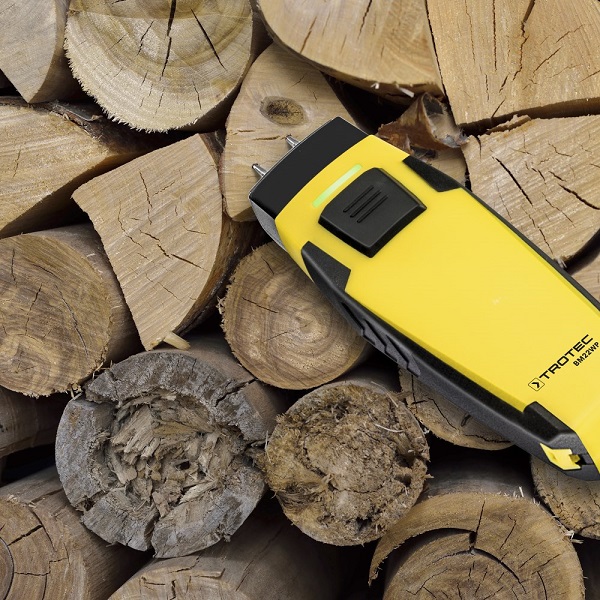

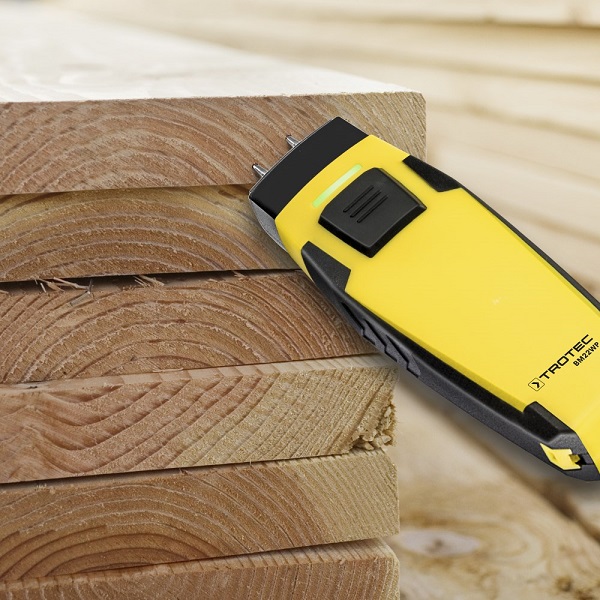

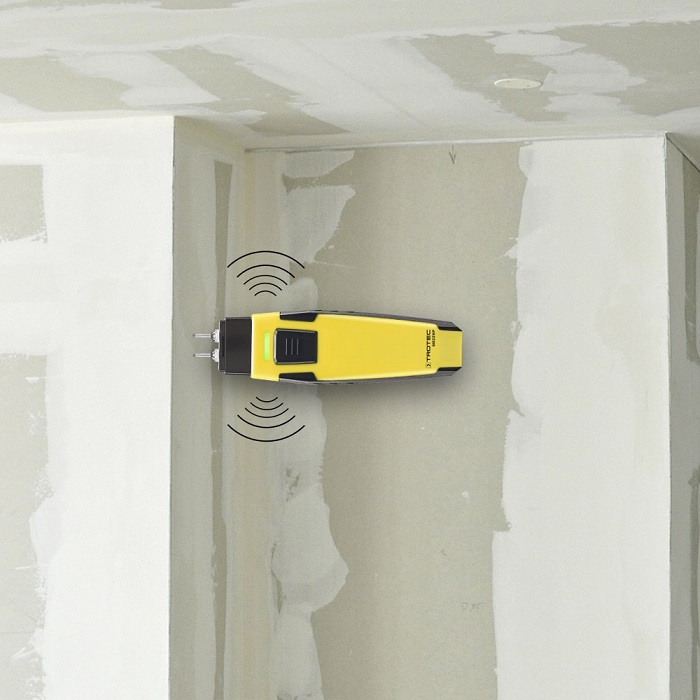

The measuring device BM22WP is immediately ready for use. It can easily be connected to the app and allows you a quick and easy to detect near-surface humidity in different materials.Due to the easily interchangeable puncture steel measuring pins of the BM22WP a solid connection with the test material is possible. This ensures fast measurement results in wood moisture detection of cut and firewood or the determination of material moisture content on soft building materials such as plaster, plaster or screed.
Compared to non-app-supported moisture meters, the BM22WP's smart combination of appSensor and the app-free app, Multimeasure Mobile, provides many additional benefits in terms of flexibility, analysis, data control, and documentation.
Compare directly in the app different humidity measurements of an object, which were created at different times. Or use the measured values ​​in combination for differentiated analyzes directly on site. Useful additional features such as the alarm function, the export of humidity readings to a further analysis software as well as the creation of a report complete the universal application possibilities of the BM22WP.Moisture matrix made easy, also photo linked
With the MultiMeasure Mobile App, you can not only automatically display the MIN, MAX and average values ​​or mark individual measured values ​​directly in a picture, but also create, save and send elaborate graphical representations in the form of a photo-linked moisture matrix.
The grid to be measured can be backed up with a real image and later output for documentation as a superimposed graphic with the moisture matrix – for example for your measurement report, which you can generate and send directly from the app.

WHAT IS AN APPSENSOR?
Trotec appSensors are compact precision measuring instruments with high-quality sensors which are designed to save energy and space and do not have any evaluation electronics or display units, as the operation and data evaluation of the devices are almost completely done via the connected smartphone. In combination with the free MultiMeasure Mobile app this instrument concept can convince with many advantages.

All appSensors by Trotec offers these advantages:

  • Professional sensor technology for precise measurement results

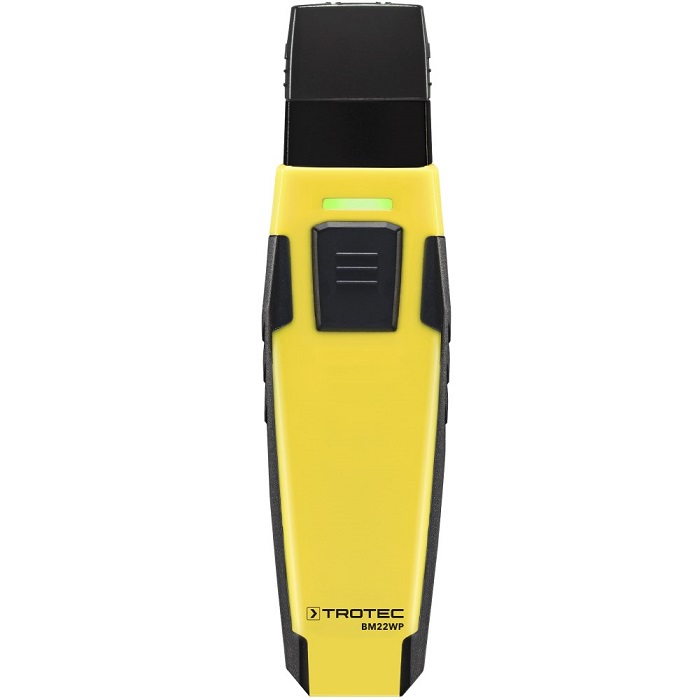

  • Easy app connection via Bluetooth with optical connection confirmation via LED on the device
  • Meter control and data display wireless via app
  • Easy data acquisition even at remote locations, as the values ​​do not have to be read directly on the meter
  • Additional determination and display of minimum value, maximum value or average value
  • Measurement value keeping, logging and alarm function
  • Hand strap for secure handling included
  • Practice-optimized German industrial design – registered design

WHY APPSENSORS? AREN'T THERE MANY MEASURING APPS ALREADY?Of course there are numerous apps that use the built-in smartphones electronic components for measurements or derived calculations such as the built-in microphone, the gyroscope, the camera or other components. However these components were not designed for precise measurement studies, but primarily for optimal use of the mobile device.
For one thing the results obtained are not comparable with the results of dedicated sensors designed for measurement applications. On the other hand there is not a suitable electronic component in the existing smartphone for every measuring task, for example for contact moisture measurement or contactless temperature measurement.
Trotec appSensors, on the other hand, contain professional sensors for accurate measurement results and that's exactly what they have been designed for. For professional measurements, use the clever combination of appSensor and MultiMeasure Mobile – the free app for iOS and Android.

MULTIMEASURE MOBILE – ALL APP BENEFITS OVERVIEW

To use this AppSensors on your smartphone you need MultiMeasure Mobile – a free app for controlling, evaluating and displaying data from all Trotec app sensors connected to your mobile device.

MultiMeasure Mobile offers numerous benefits for you:

  • Parallel operation of multiple app sensors
  • Fast and intuitive navigation
  • Measured value display numerically or as diagram / matrix
  • Integrated report function for on-site documentation
  • Organizer function for measurement data and documents
  • Customer management already integrated
  • Varied analysis options directly in the app
  • Photo-linked measured value storage
  • Matrix measurements, also photo linked
  • Full data synchronization to MultiMeasure Professional via Cloud

MultiMeasure Mobile turns your mobile device into a multifunctional measurement data manager.All app sensors are automatically detected by MultiMeasure Mobile and can be connected to the app via Bluetooth and read out. The operation is just as simple and intuitive as the installation: Simply download MultiMeasure Mobile to your mobile device for free – click here for the download page for iOS or Android.

BM22WP – BENEFITS IN PRACTICE:

  • Wood and building material measurement device in one

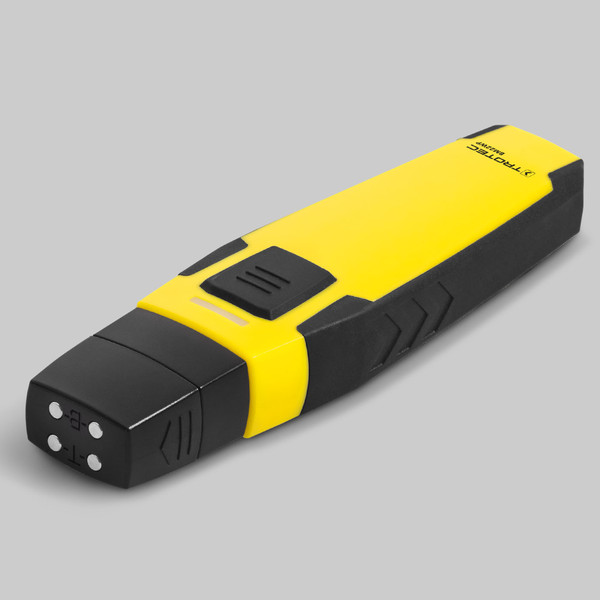

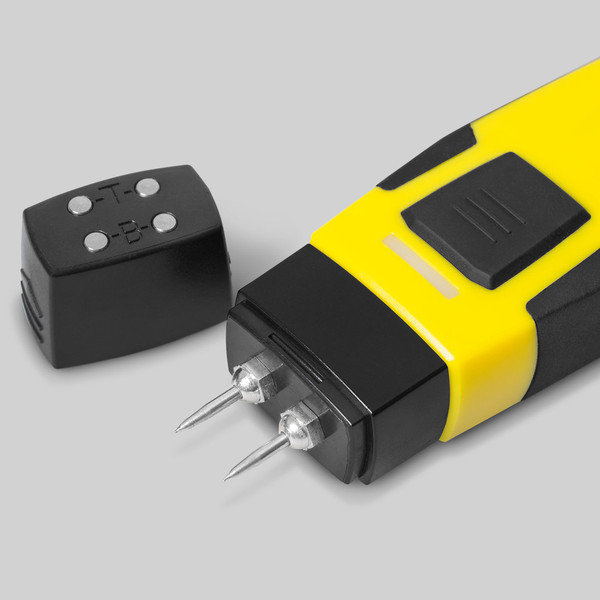

  • Protection cap with integrated test function

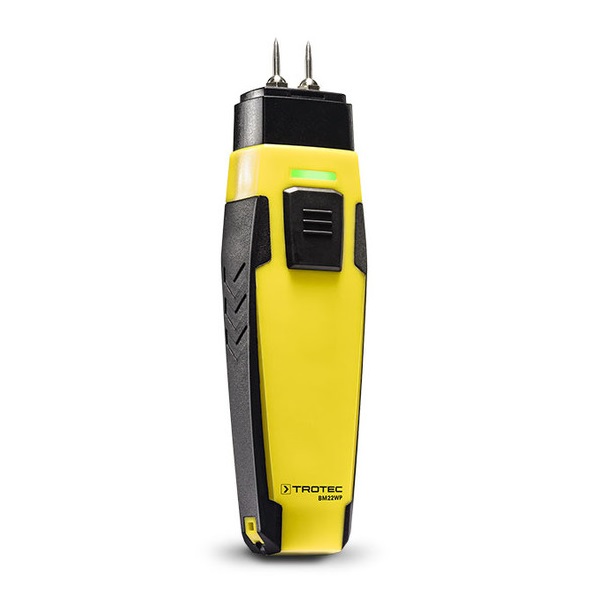

  • Easy changeable puncture steel measuring pins
  • Automatic function and battery test
  • High quality sensors and numerous measuring functions
  • Smart combination of appSensor and the app MultiMeasure Mobile
  • Automatic shut off

קטגוריה

שתפו את המוצר

Facebook
Email
LinkedIn
WhatsApp

למה כדאי לכם לקנות אצלנו?

מפרט טכני מלא:

אפשר לראות מדי לחות שלנו כאן.

תבקרו בערוץ Youtube של NDT24 כאן

TECHNICAL DATA
General information
Article number 3.510.206.025
Wood moisture [%]
Min. measuring range [%] 6
Max. measuring range [%] 50
Resolution [%] 1
Approx. accuracy ± [%] 2
Measuring principle Resistance measuring method
Material moisture [%]
Min. measuring range [%] 0.2
Max. measuring range [%] 2.4
Approx. accuracy ± [%] 0.2
Resolution [%] 0.05
Housing design
Electrode length [mm] 8
Surrounding conditions
Operation – min. temperature [°C] -20
Operation – max. temperature [°C] 60
